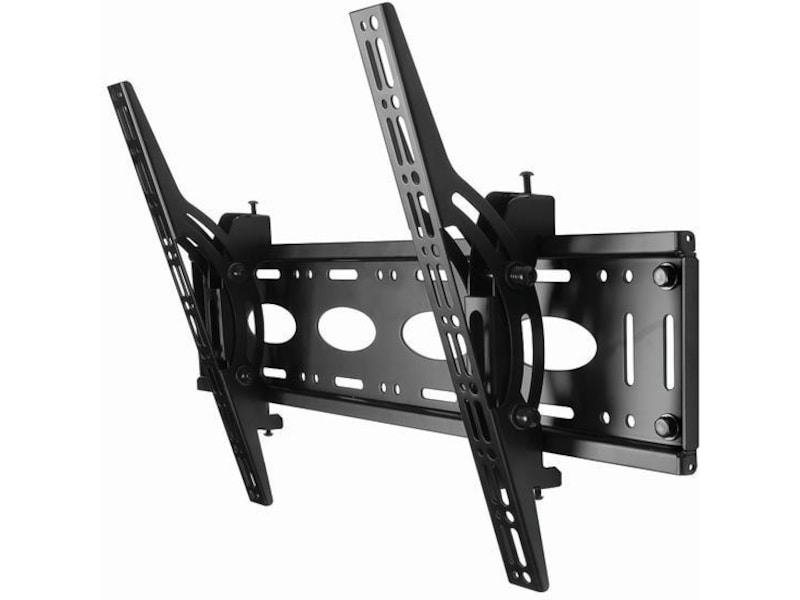

B-Tech BT8432-PRO 46" - 80" Black
Designed to mount large to extra-large sized screens, the BT8432 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8432 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.
Features:

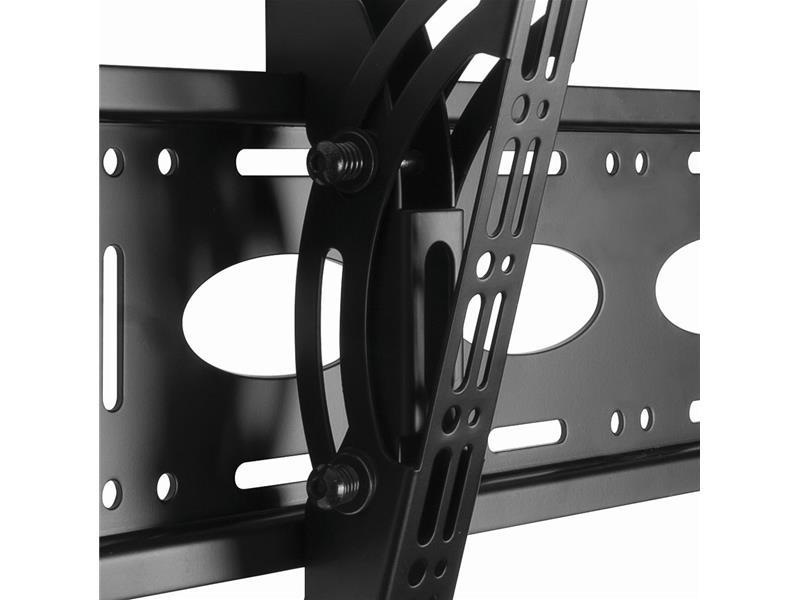

- Unique 'Torsion-Tilt' mechanism for easy tilt adjustment

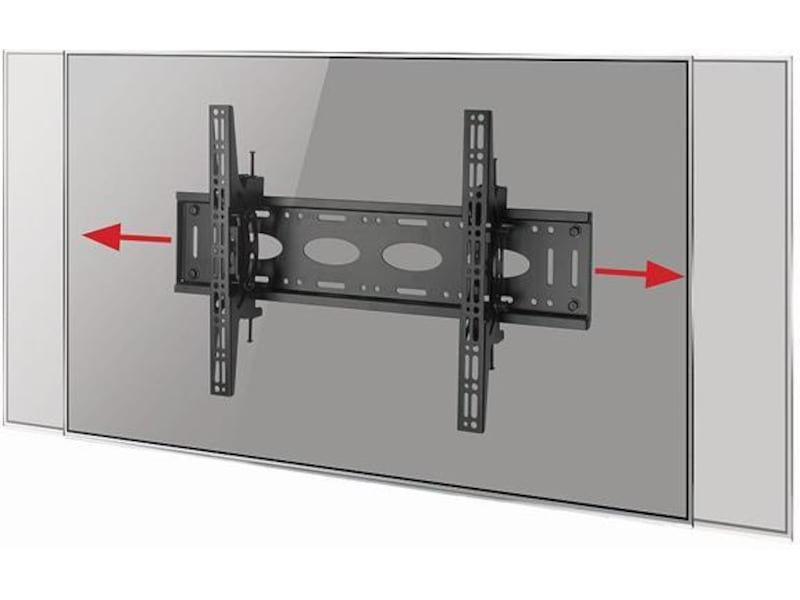

- Post installation screen alignment for perfect screen positioning
- Compatible with B-Tech's collar and pole system for pole mounting screens

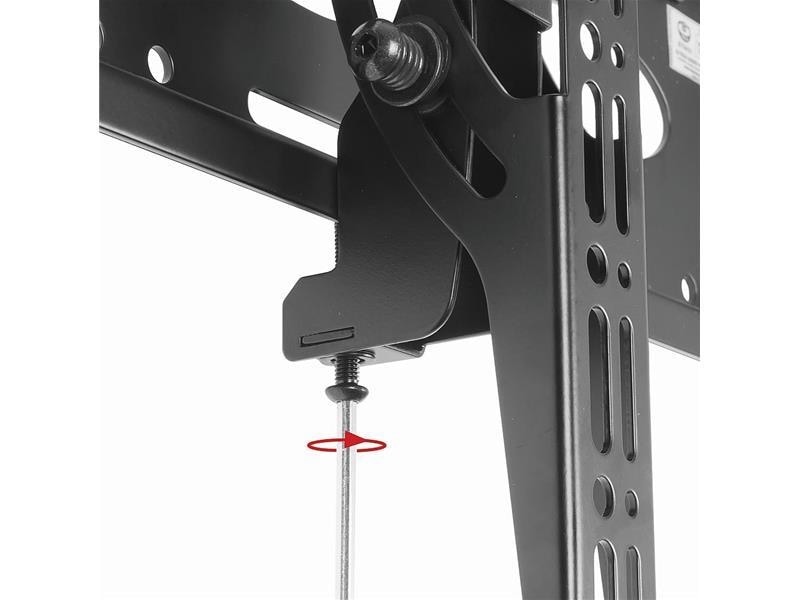

- Arms feature levelling screws to adjust the screen height
- Safety screws help prevent unauthorised removal of screens
- Simple ‘hook-on’ installation
- All mounting hardware included
Specifications:
- Recommended screen size: 46”- 80"
- Max load when wall mounted: 70kg
- VESA® compatibility: up to 600 x 400
- Universal fixings: up to 677 x 400mm
- Tilt: +/-15°

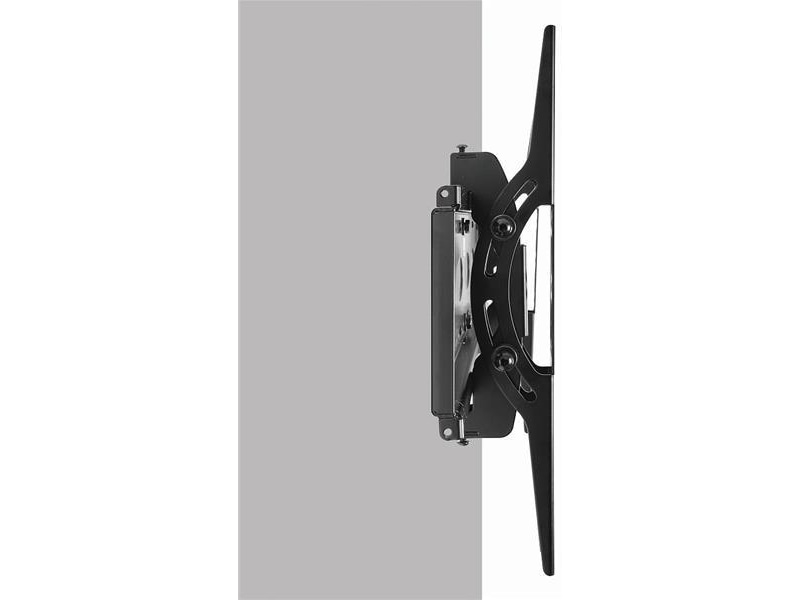

- Distance from wall (flat): 81mm
- Distance from wall (full tilt): 148mm
