Artikelnummer: 1328443 / Tillverkarens artikelnummer: 10122201

More pictures from BlueWalker PowerWalker VFI 10000 ICT IoT

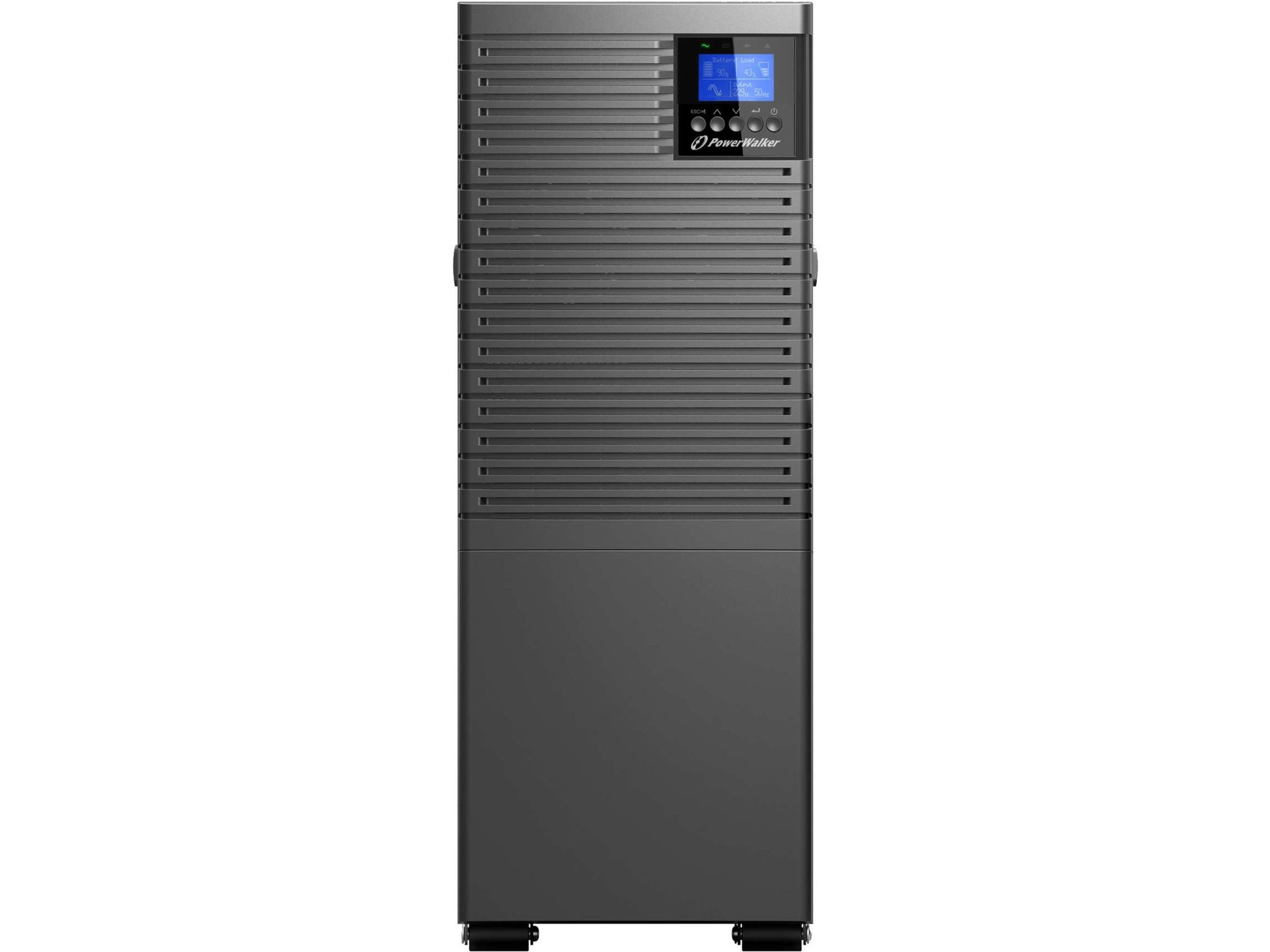

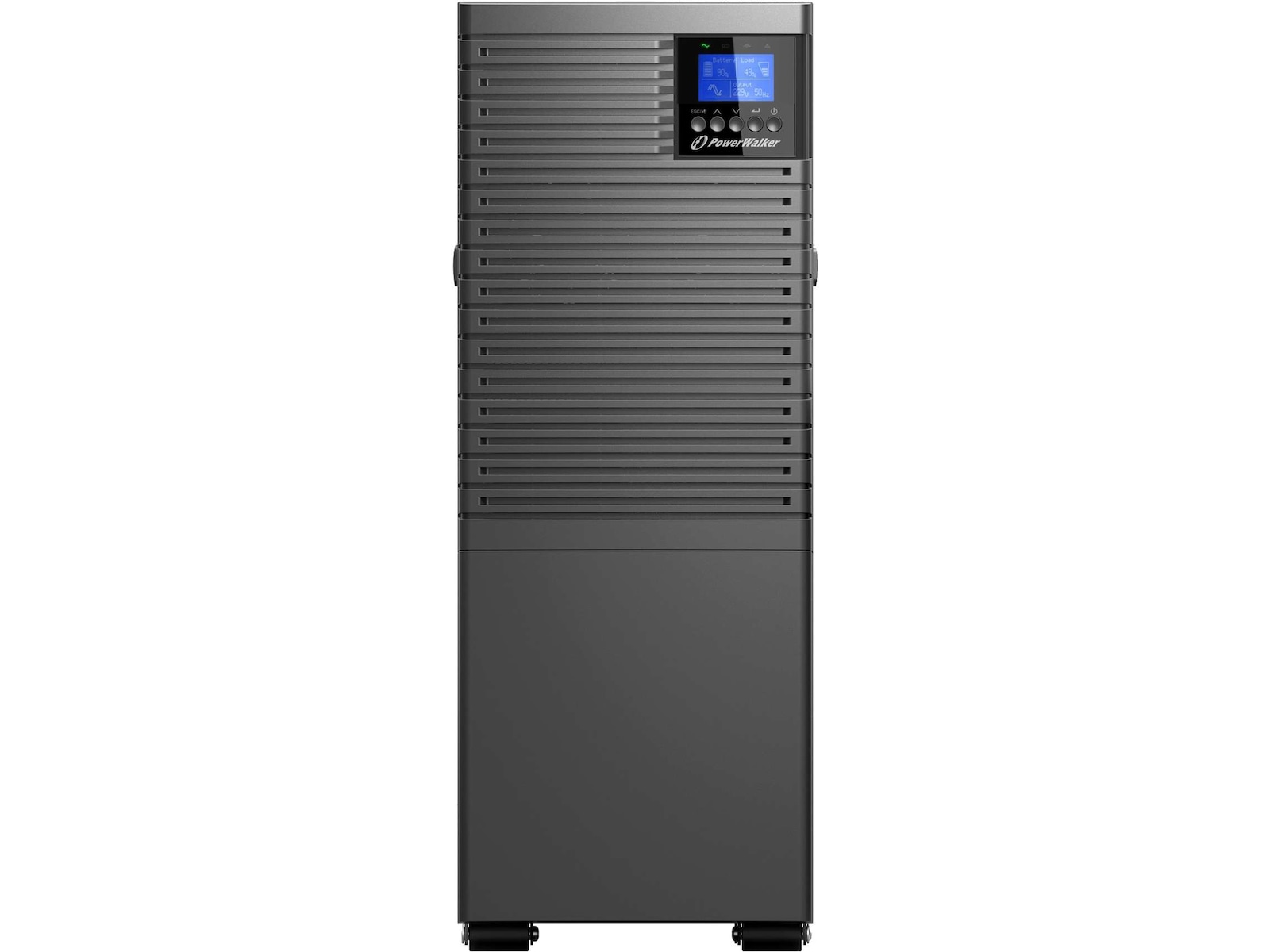

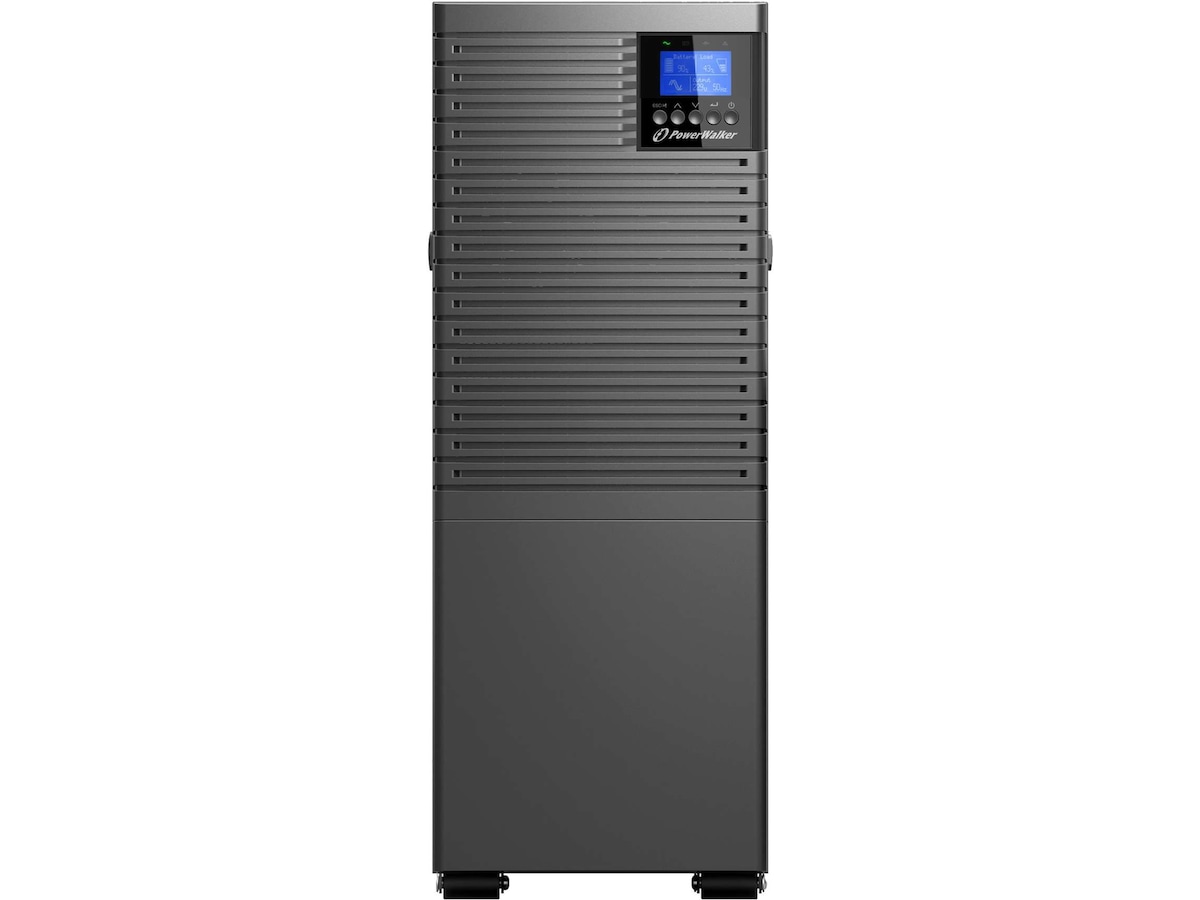

BlueWalker PowerWalker VFI 10000 ICT IoT

  • PowerWalker Flagship Solution / Bestseller!
  • IoT Solution with the Smartphone App: WinPower View [Apple Store | Android]
  • Output Power Factor 1.0
  • Optimized Battery Management (OBM) – for longer Battery Life
  • EBM Auto-Detection for easy setup of External Baterry Packs
  • Parallel Operation, up to 3 units
  • Built-in ethernet port offers Modbus TCP/ IP
  • Internet Options: LAN Cable or WLAN Dongle

The PowerWalker VFI 6000-10000 ICT IoT Series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.

This UPS series utilizes double conversion (Online) technology and features unity power factor, ensuring the availability of your mission critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.

Allmänt
Produktlinje PowerWalker
Modell VFI 10000 ICT IoT
Underkategori UPS
Produkttyp UPS
Producentens garanti (månader) 24
EAN 4260074983029
Expansionsuttag
Expansionskortplatser 1 (totalt)/ 1 (ledig) x Intelligent Slot
Kabeldetaljer
Medföljande kablar USB-kabel - extern
Programvara
Typ Winpower
Nätdel
PF (Power Factor) 0.99
Formfaktor Extern
Effektivitet 95% at 100% Load (line mode)
Tillförd spänning AC 220/230/240 V
Effekt 10000 Watt
UPS-teknik Online
Inspänningens område Växelström 110 - 276 V
UPS utgångsvågform Sinusvåg
THD (Total Harmonic Distortion) 1 %
Tillförd spänningsmarginal ± 1%
Typ av ingångskontakt Terminalblock
Tillhandahållen frekvensmarginal ± 0.1Hz
Kapacitet (VA) 10000 VA
Nätspänning AC 220/230/240 V
Erforderlig frekvens 45 - 55 / 54 - 66 Hz
Transfertid 0 ms
Strömenhetsegenskaper Optimized Battery Management (OBM), Parallell kapacitet, LED-indikatorer, Nödavstängning, LCD-bildskärm, Enhanced Battery Management (EBM), HID-stöd (Human Interface Device), Generatorkompatibel
Kontaktdetaljer för uteffekt
Kontaktdetaljer för uteffekt Terminalblock
Batteri
Tillförd spänning 12 V
Driftstid (upp till) 3.4 min
UPS
Batterikapacitet 9 Ah
Antal batterier 20
Diverse
Standarder som följs VFI-SS-311
Färgkategori Grå
Egenskaper 2 inbyggda kylfläktar
Mått och vikt
Bredd 22.5 cm
Djup 41.6 cm
Höjd 58.9 cm
Vikt 68.2 kg
Miljöparametrar
Ljudnivå 55 dB
Luftfuktighet vid drift 0 - 95% RH (non-condensing)
Min temperatur vid drift 0 °C
Max temperatur vid drift 40 °C
Nätverk
Gränssnitt för fjärradministration RS-232, USB
Tillhandahållet gränssnitt
Gränssnitt 1 x hantering (RS-232), 1 x HDMI - 19-stifts HDMI typ A, 1 x torr kontakt, 1 x hantering (USB) - 4-stifts USB typ B, 1 x LAN - RJ-45, EPO (emergency power off)
Runtime-detaljer
Runtime (upp till) 3.4 min vid full laddning, 9.1 min vid halv maskin

BlueWalker PowerWalker VFI 10000 ICT IoT

VFI 10000 ICT IoT

Artikelnummer: 1328443 / Tillverkarens artikelnummer: 10122201
19 663:- Exkl. moms
2 stk. i lager. (1-3 dagar leveranstid)
Lägg i kundvagn You are in FLEX renewal modus Tillagd i kundvagnen
