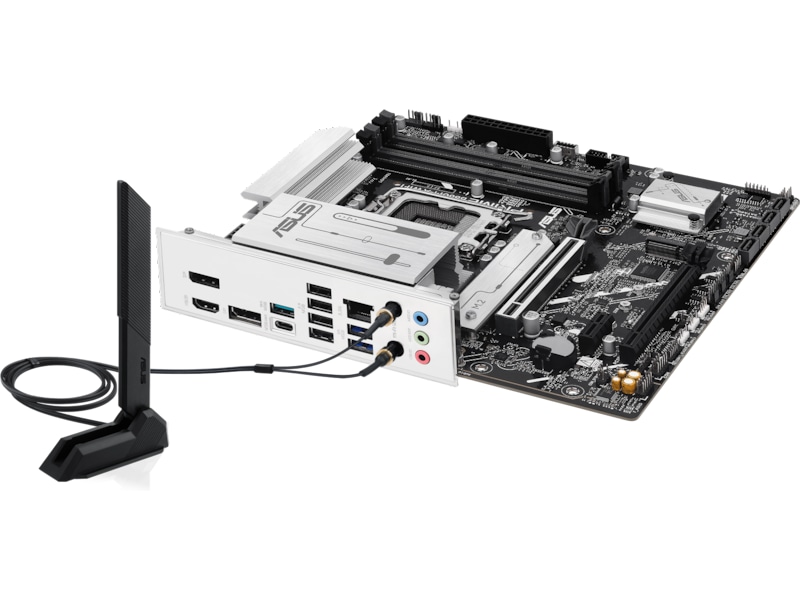

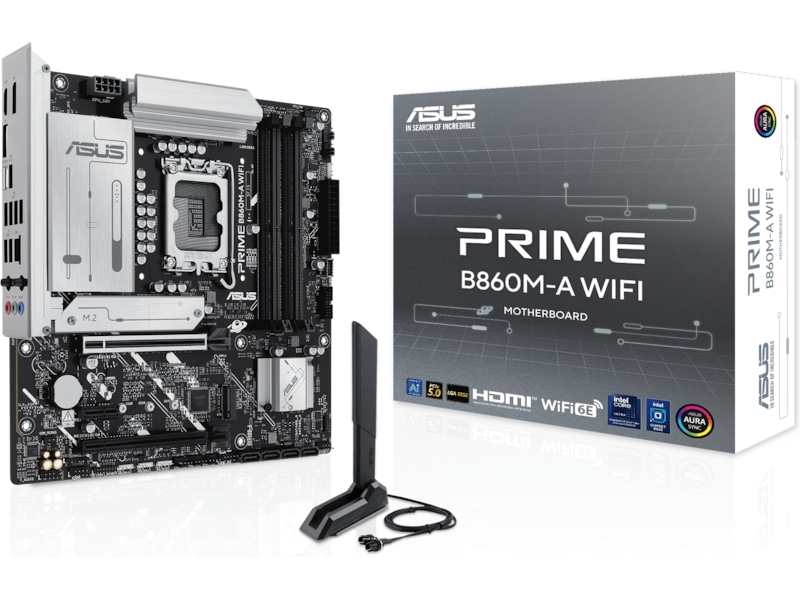

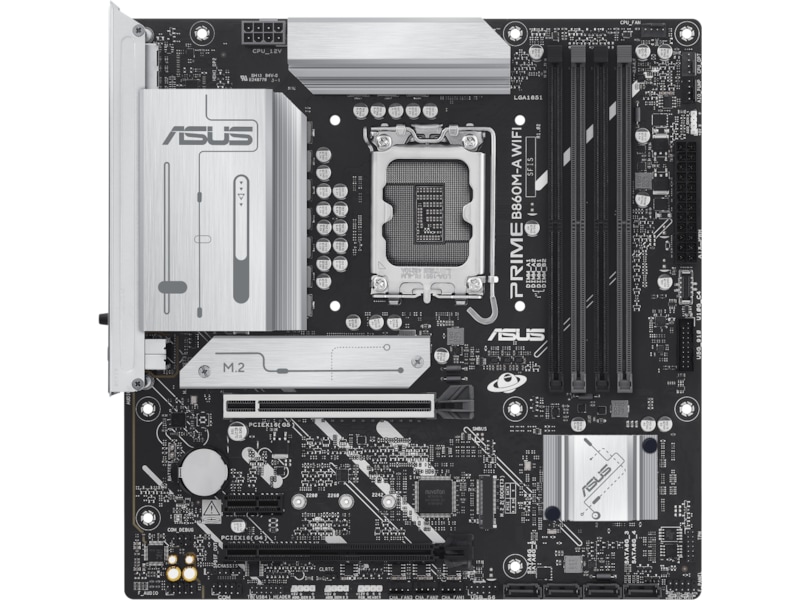

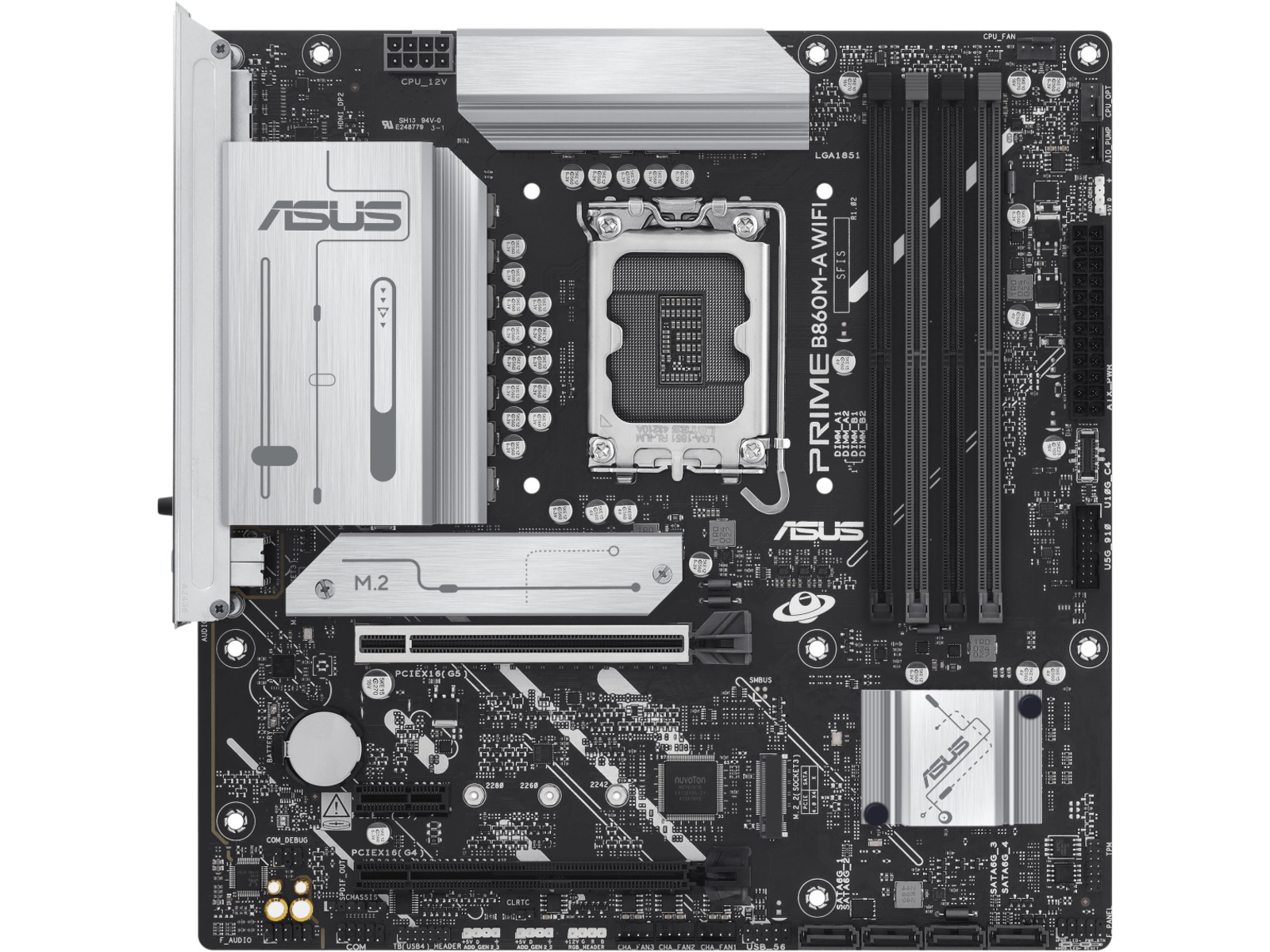

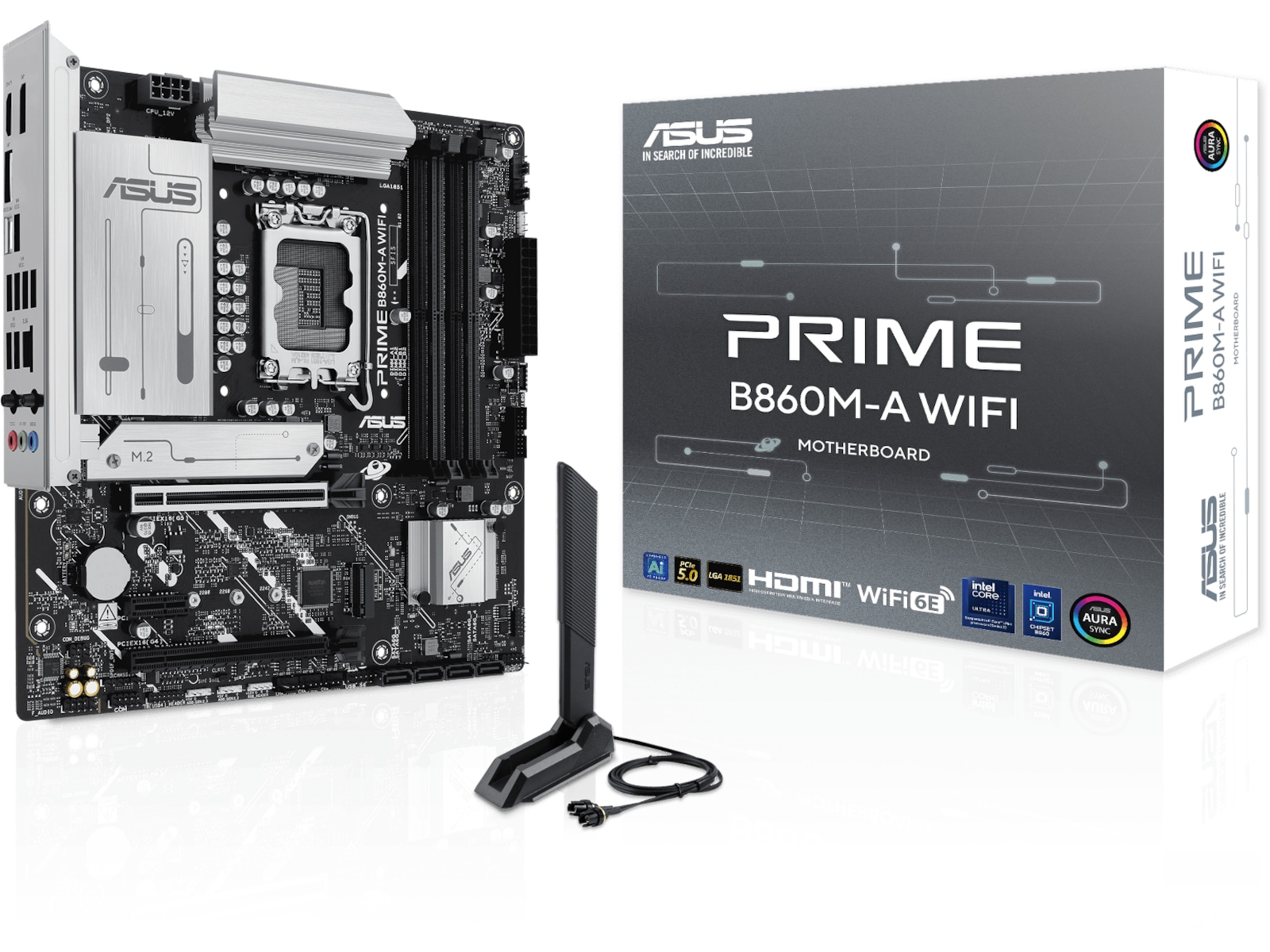

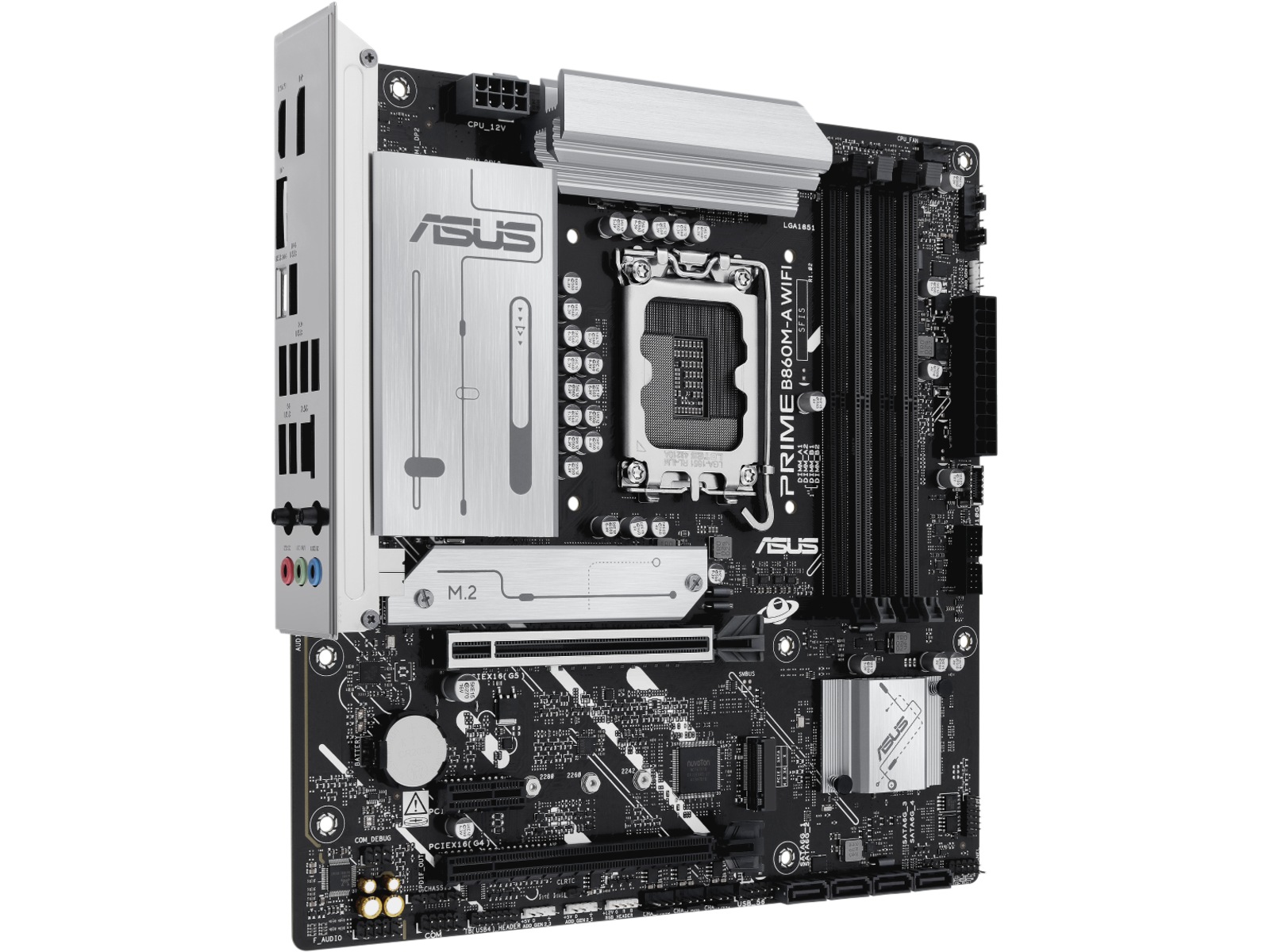

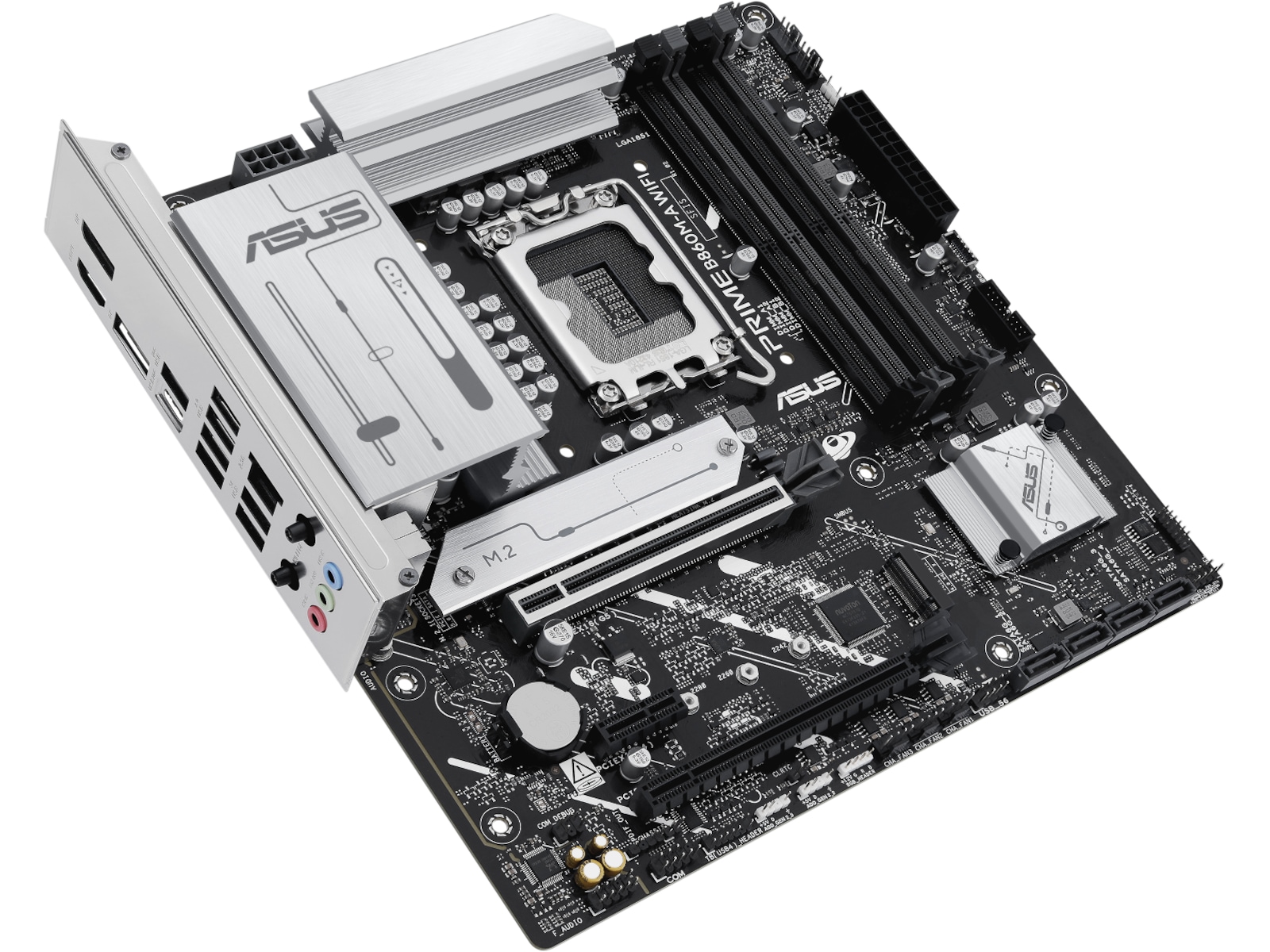

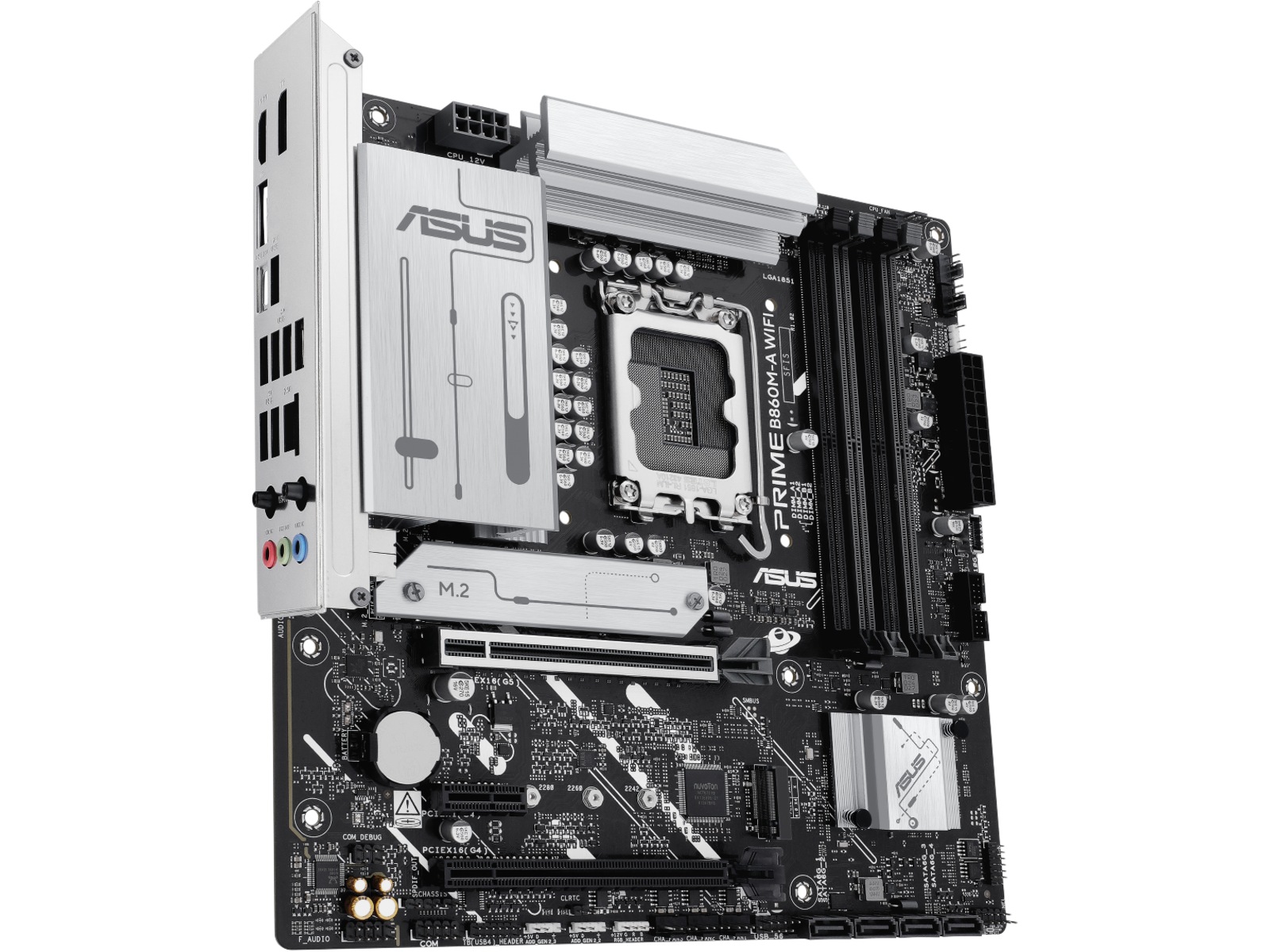

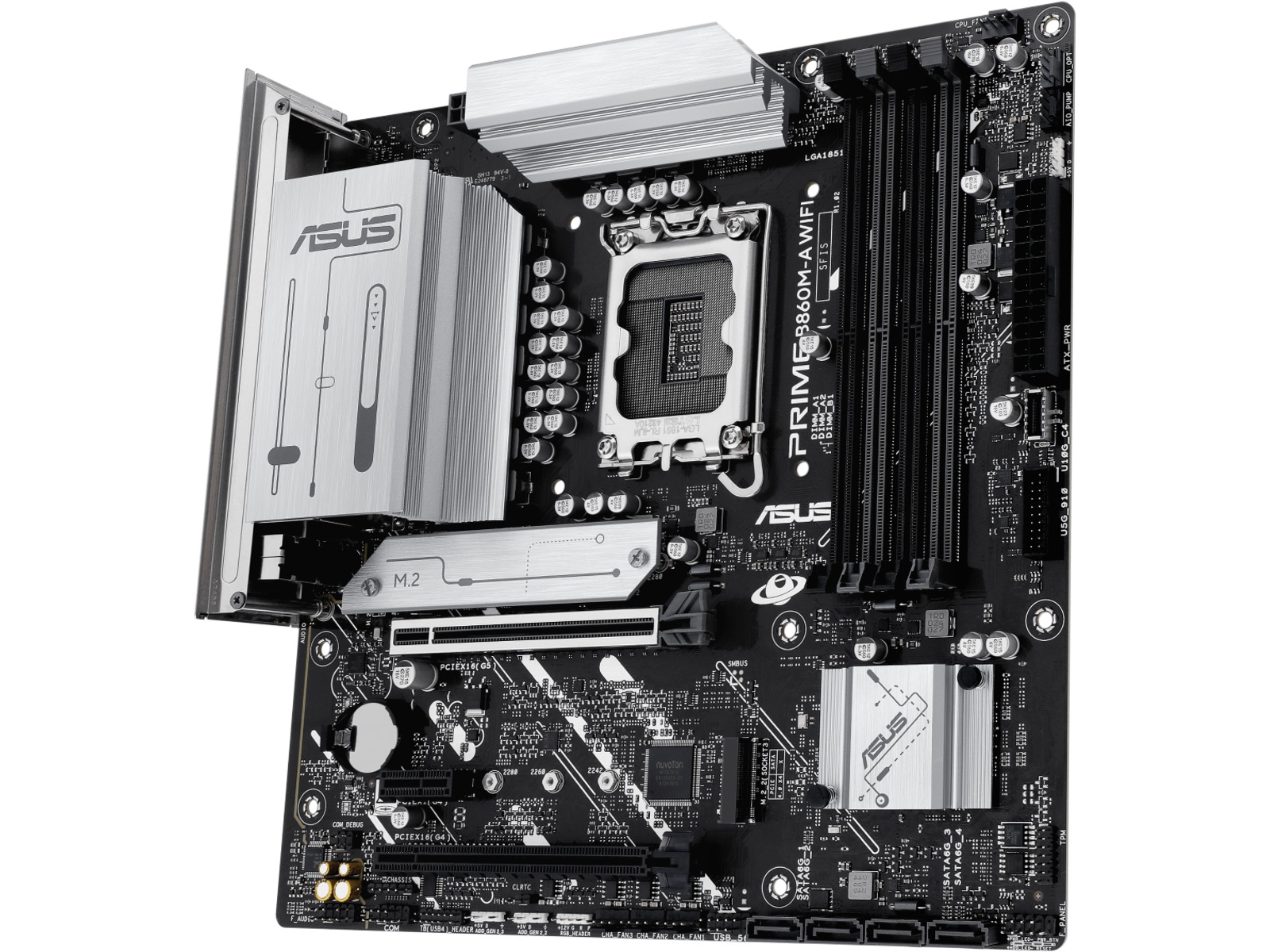

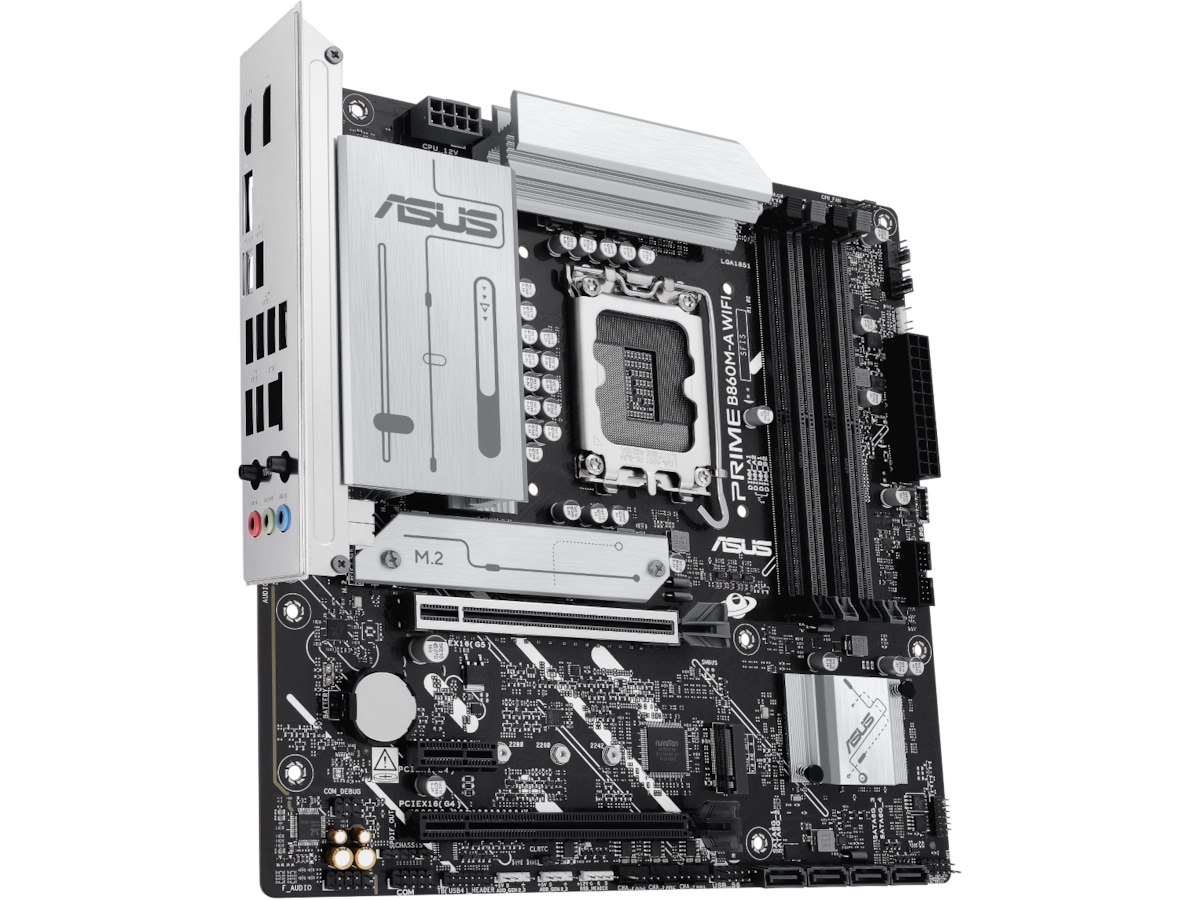

ASUS PRIME B860M-A WIFI Moderkort

LGA 1851, micro-ATX, B860, DDR5, 1x PCIe 5.0, 2x M.2

2 232:- Exkl. moms
49 stk. i lager. (1-3 dagar leveranstid)

ASUS PRIME B860M-A WIFI

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Robust power design

Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2). The PRIME B860M-A is designed to meet the needs of high-core-count CPUs. It features 7(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

Two M.2 slots (up to 128Gbps)

The PRIME B860M-A offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Allmänt
Produktlinje ASUS
Modell PRIME B860M-A WIFI
Producentens garanti (månader) 36
EAN 4711387806289
Moderkort
RAM som stöds (registrerad eller buffrad) Ej buffrad
Kompatibla processorkommentarer Stödjer Intel Core Ultra-processorer (serie 2)
RAM-hastighet som stöds 4333 MHz (O.C.)
Kretstyp Intel B860
RAM-kortplatser 4 DIMM-kortplatser
Processor-socket LGA1851-uttag
RAM-teknik som stöds DDR5 SDRAM
Formfaktor Micro ATX
Stöder Ram Integrity Check On-die ECC, Icke ECC
Strömkontakter 8-pin ATX12V-kontakt, 24-pin kontakt för huvudström
Moderkortegenskaper
BIOS-typ AMI
Viloläge/väckning Wake on LAN (WOL), Wake on PME
Hårdvaruegenskaper 6 Layer PCB, ASUS Fan Xpert 2+, M.2 kylfläns, ESD Guards, ASUS 5X Protection III, Q-Dashboard, ASUS DIGI+ VRM, Q-LED Core, ASUS Q-Design, ASUS ProCool, ASUS Stainless Steel Back I/O, LANGuard, ASUS EZ DIY, Dr.MOS MOSFET, ASUS Aura Sync, överspänningsskydd, Q-Slot, VRM-kylelementskonstruktion, Q-DIMM, Q-Antenna, Preboot eXecution Environment (PXE), ASUS SafeSlot Core, ASUS Enhanced Memory Profile (AEMP) III, 7+1+1+1-fas energidesign
BIOS-egenskaper ASUS EZ Flash, UEFI BIOS, ASUS UEFI BIOS EZ-läge
Gränssnitt
USB/FireWire-portkonfiguration (sidhuvud) 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
USB/FireWire-portkonfiguration (aktiv) 1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagringsportar 4 x SATA-600 (RAID), 2 x M.2
USB/FireWire USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1
Lagring M.2-uttag, Serial ATA-600 (RAID)
Videoutgång
Typ Grafikadapter (CPU krävs)
Ljudutgång
Standarder som följs HD-ljud
Ljud High Definition Audio (8-kanalig)
Typ Ljudkort
Nätverk
Bluetooth Ja
Nätverk 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Datalänkprotokoll 2.5 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11b, Fast Ethernet, IEEE 802.11n, Ethernet, IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, IEEE 802.11ac, Bluetooth 5.3, IEEE 802.11a
Kabeldetaljer
Medföljande kablar 2 x Seriell ATA-kabel
Diverse
Produkttyp Moderkort
Inkluderade tillbehör 1 st. M.2-gummipaket, M.2-skruvpaket, ASUS Wi-Fi Q-antenna
RAM
Egenskaper Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)
Expansionsuttag
Expansionskortplatser 1 x PCIe 4.0 x16 (x4-läge), 2 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 1 x PCIe 4.0 x1, 1 x PCIe 5.0 x16, 1 x CPU, 4 x DIMM 288-stift
Lagringsgränssnitt
Lagringsgränssnitt PCIe 4.0 -kontakter: 1 x M.2, PCIe 5.0 -kontakter: 1 x M.2, SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Tillhandahållet gränssnitt

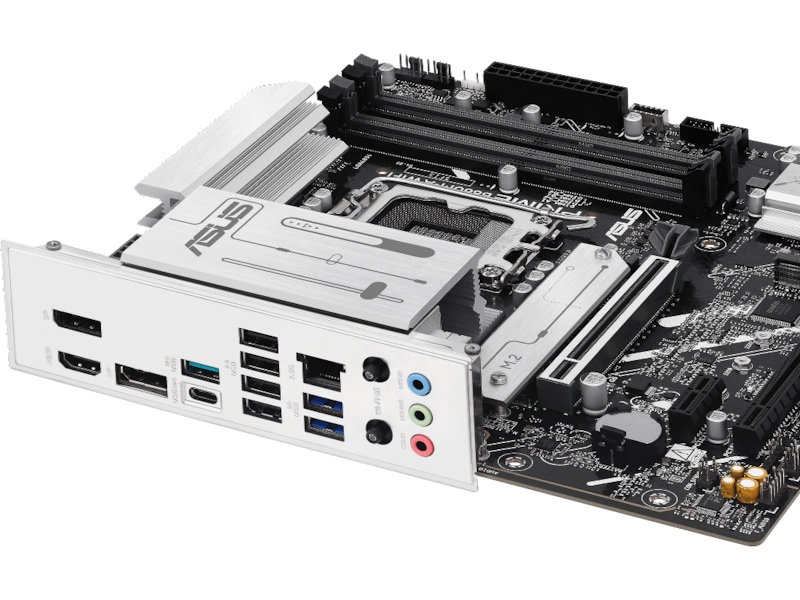

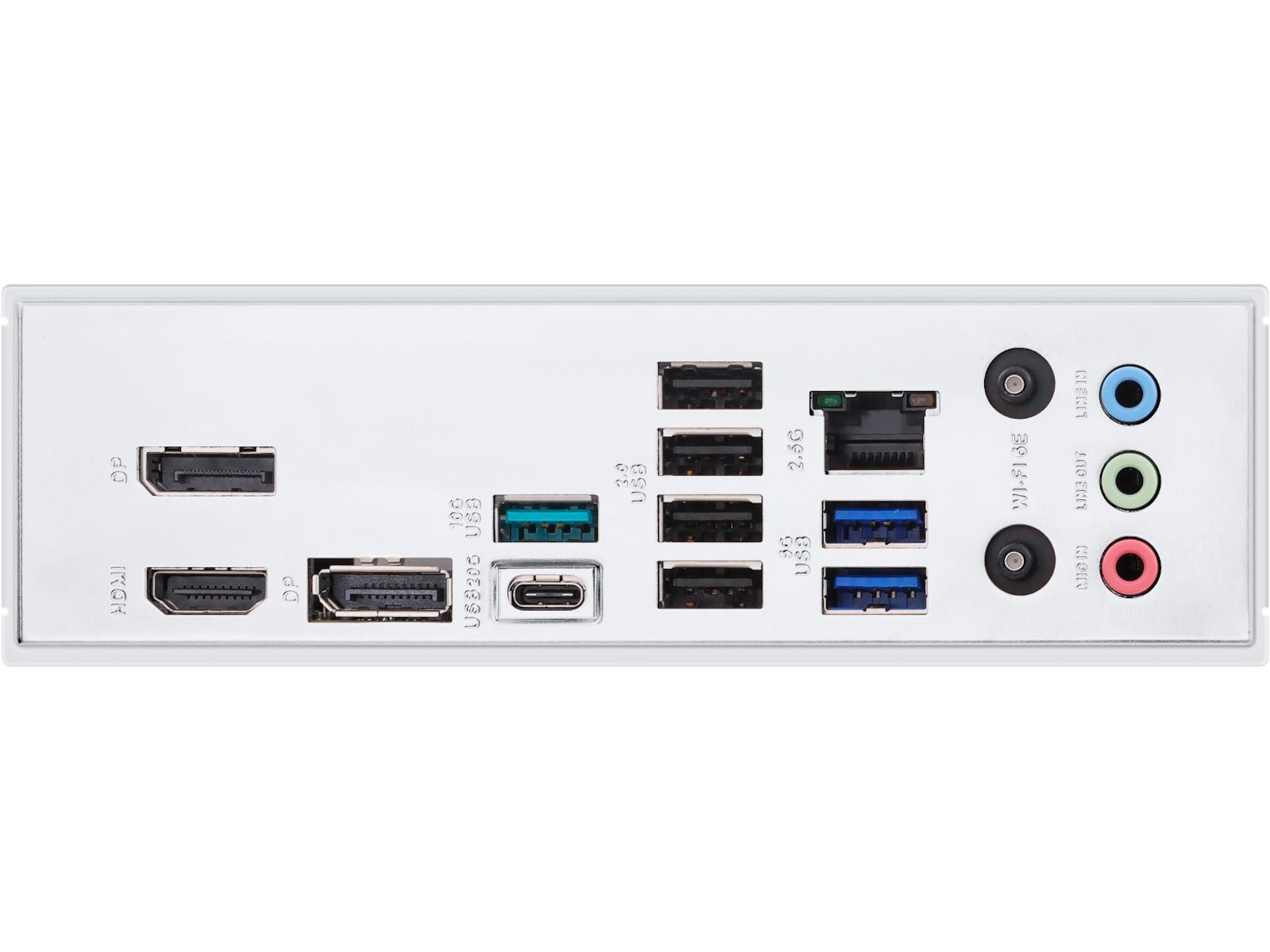

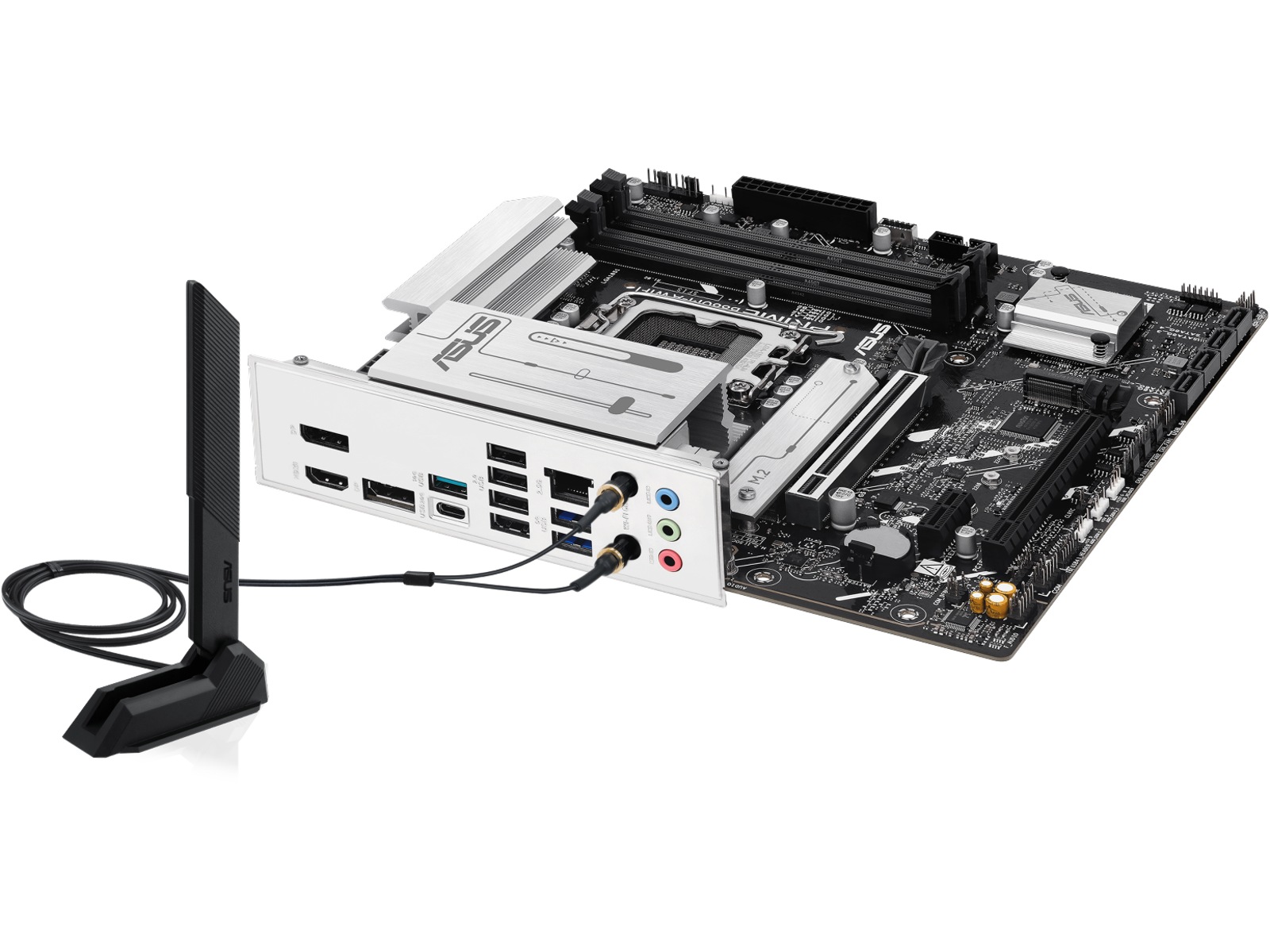

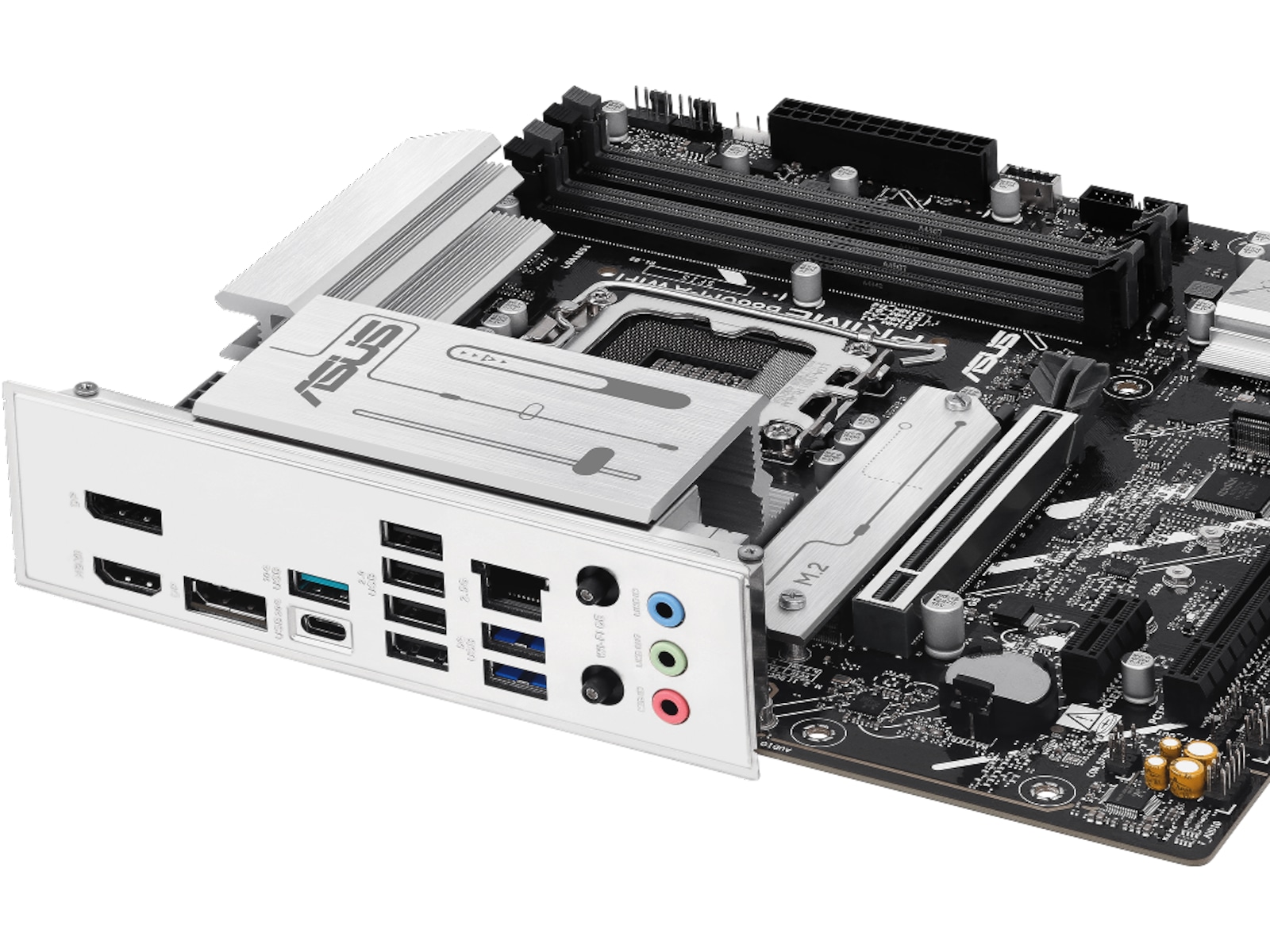

Gränssnitt 1 x USB 3.2 Gen 2, 1 x mikrofon - mini-jack, 1 x ljudutgång - mini-jack, 1 x HDMI, 2 x USB 3.2 Gen 1, 2 x DisplayPort, 1 x ljudingång - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 1 x USB-C 3.2 Gen2x2, 2 x antenn, 4 x USB 2.0
Interna gränssnitt
Interna gränssnitt 2 x USB 3.2 Gen 1 - header, 2 x USB 2.0 - header, 1 x SPDIF-ut - header, 1 x seriell - header, 1 x USB-C 3.2 Gen 2 - header, 1 x ljud - header, 1 x Thunderbolt 4 - header, 1 x SPI - header
Programvara
Programvara inkluderad WinRAR (40 days trial), ASUS DriverHub, Norton 360 Deluxe (60 dagars provperiod), ASUS Fan Xpert 2+, Armoury Crate, ASUS CPU-Z, ASUS GlideX
