Höjdpunkter

Kraftfull 7-i-1 antenn för mångsidig uppkoppling.
Bredbandsdeckning från 617 till 6000 MHz för 5G beredskap.
Robust, väderresistent konstruktion med IP69K betyg.
Perfekt för bilar, båtar och olika industriella fordon.
Enkel installation med flera monteringsalternativ.
Njut av pålitliga uppkopplingar för alla dina IoT-applikationer.

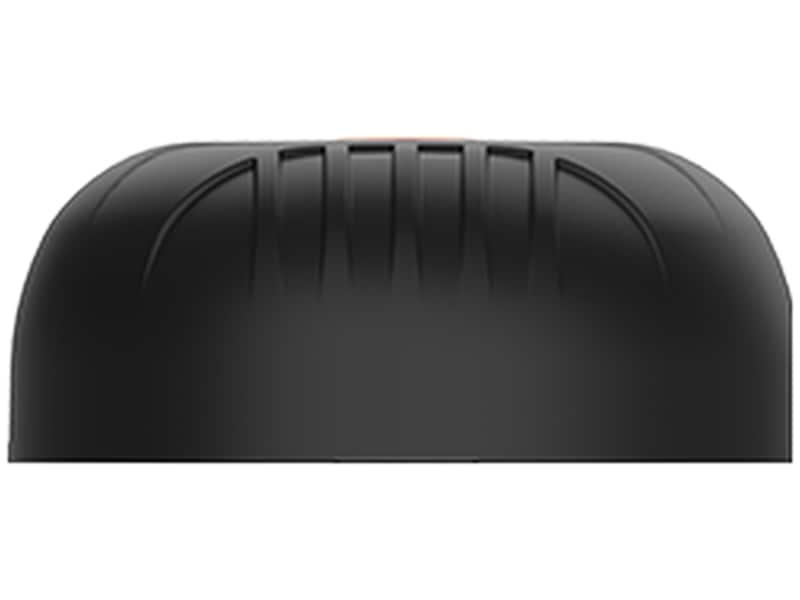

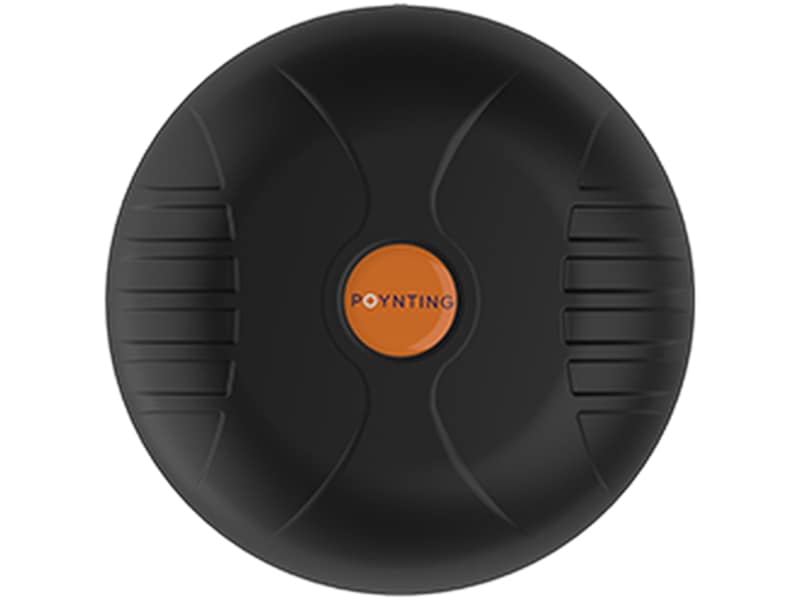

Poynting MIMO-4-17-B antenn (svart)

Name: Poynting MIMO-4-17-B antenn (svart)
Brand: POYNTING
SKU: 1314220
Price: 3490.00 SEK
Availability: InStock

4x4 LTE/5G, IP69K, 7-in-1 MIMO

Of POYNTING

2 792:- Exkl. moms

2 stk. i lager. (1-3 dagar leveranstid)

- +

Produktinfo

Poynting MIMO-4-17-B 7-in-1 Transportation & Automotive Antenna

7-in-1 High performance multi frequency automoitve antenna
Ultra-wideband coverage from 617 to 6000 MHz for cellular
4x4 MIMO LTE/5G, 2x2 MIMO Wi-Fi & GPS/GLONASS
Robust and weather resistant antenna with an IP69K rating
Ideal for transportation and marine implementation
Multi mounting options for ease of installation

The MIMO-4-17 is a 7-in-1 high performance, multi frequency antenna within a single housing. The antenna provides four cellular, two Wi-Fi and a GPS/GLONASS antenna. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi application from 5 to 6 GHz. The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 MIMO capability. The MIMO-4-17 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

Tekniska specifikationer

Allmänt
Produktlinje	Poynting Antennas
Modell	MIMO-4-17
Producentens garanti (månader)	24
EAN	6009710925409

Antenn
Impedans	50 ohm
Typ	Antenn
Maximal vindhastighet	220 km/tim.
Formfaktor	Radom
Riktning	Rundstrålande
Kompatibilitet	802.11ac, 3G, 4G, CBRS, GLONASS, Wi-Fi, 2G, 5G, 802.11g, GPS, LTE, 802.11n, 802.11ax
Frekvensintervall	1427 - 1517 MHz, 1710 - 2700 MHz, 617 - 960 MHz, 5000 - 6000 MHz, 1575.42 MHz, 3400 - 4200 MHz, 5000 - 7200 MHz, 1600 MHz, 2400 - 2500 MHz
Antennplacering/-montering	Kan monteras på vägg, Ytmonterbar, Monteras på stång, Magnetisk montering, Inomhus/utomhus, Häftmontering
Förstärkning	6 dBi (för 5000 - 6000 MHz), 5 dBi (för 2400 - 2500 MHz), 6,5 dBi (för 5000 - 7200 MHz), 3,5 dBi (för 1427 - 1517 MHz), 5,5 dBi (för 3400 - 4200 MHz), -0,5 dBi (för 617 - 960 MHz), 21 dBi (GPS), 5,5 dBi (för 1710 - 2700 MHz)
Avsedd för	Navigering, Cellulär, Wi-Fi
Egenskaper	Högerorienterad cirkulär polarisering, MIMO-teknologi, Linjär polarisering, Väderbeständig, RoHS, IK10, Vertikal polarisering, Slagresistent, UL 94-HB, IP69K
