Artikelnummer: 1253128 / Tillverkarens artikelnummer: CUBI 5 12M-001EU

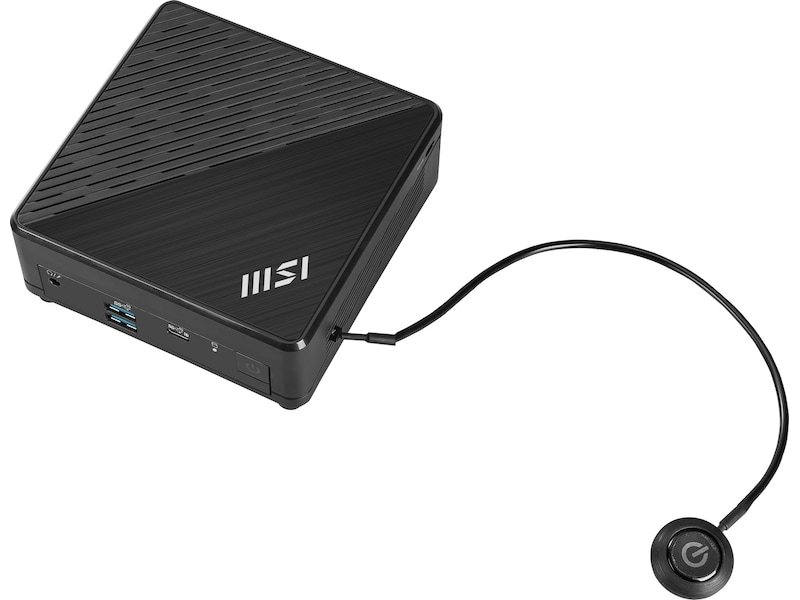

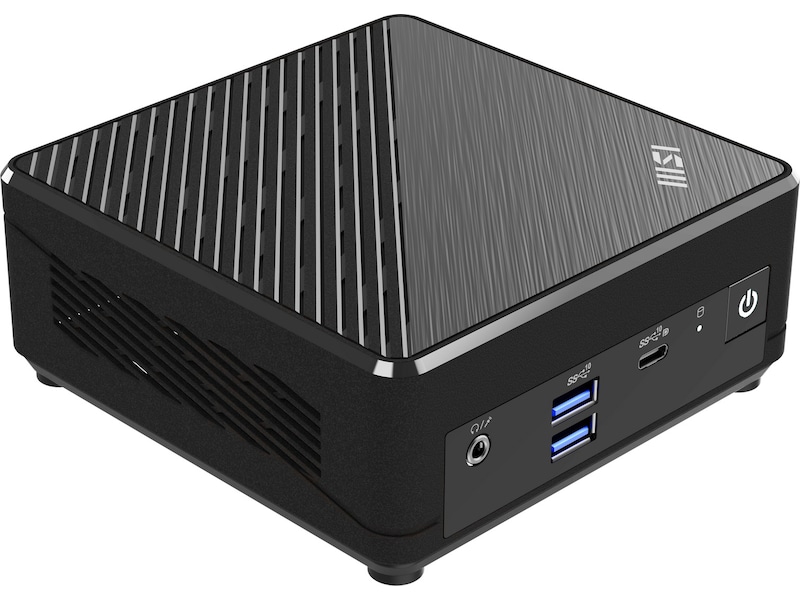

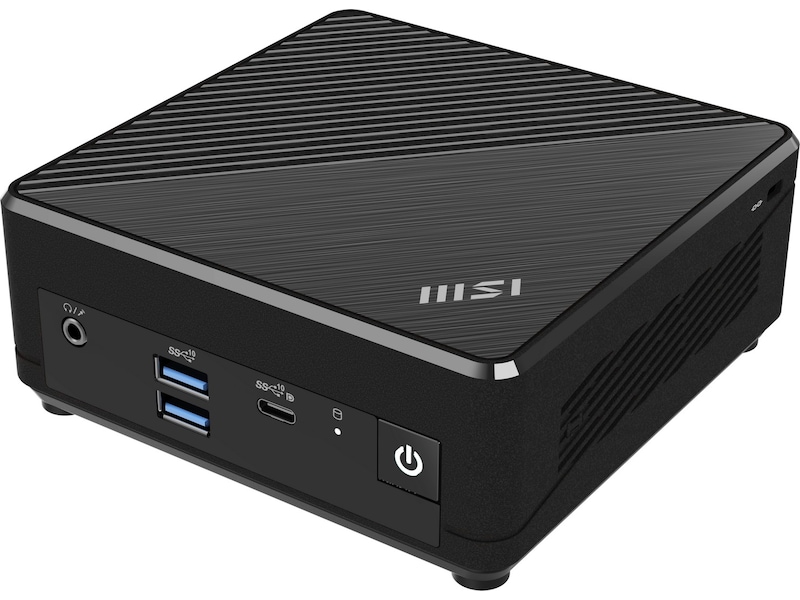

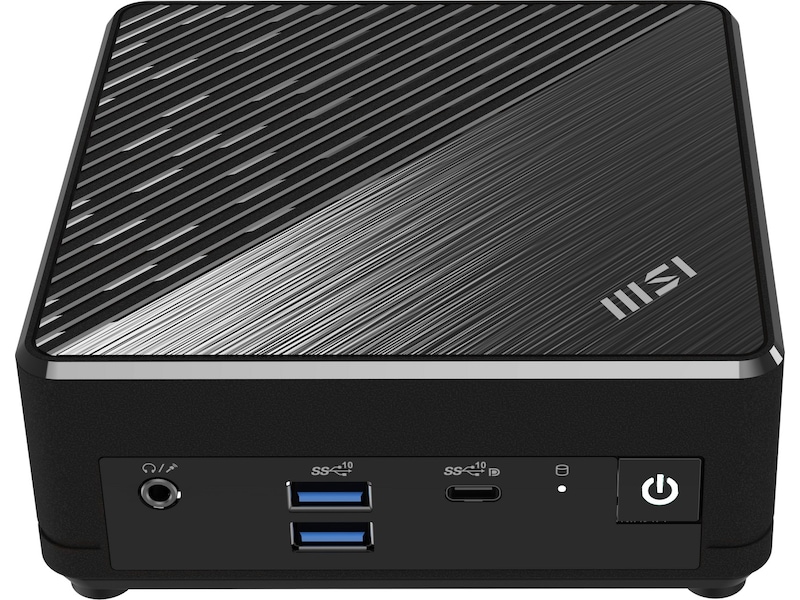

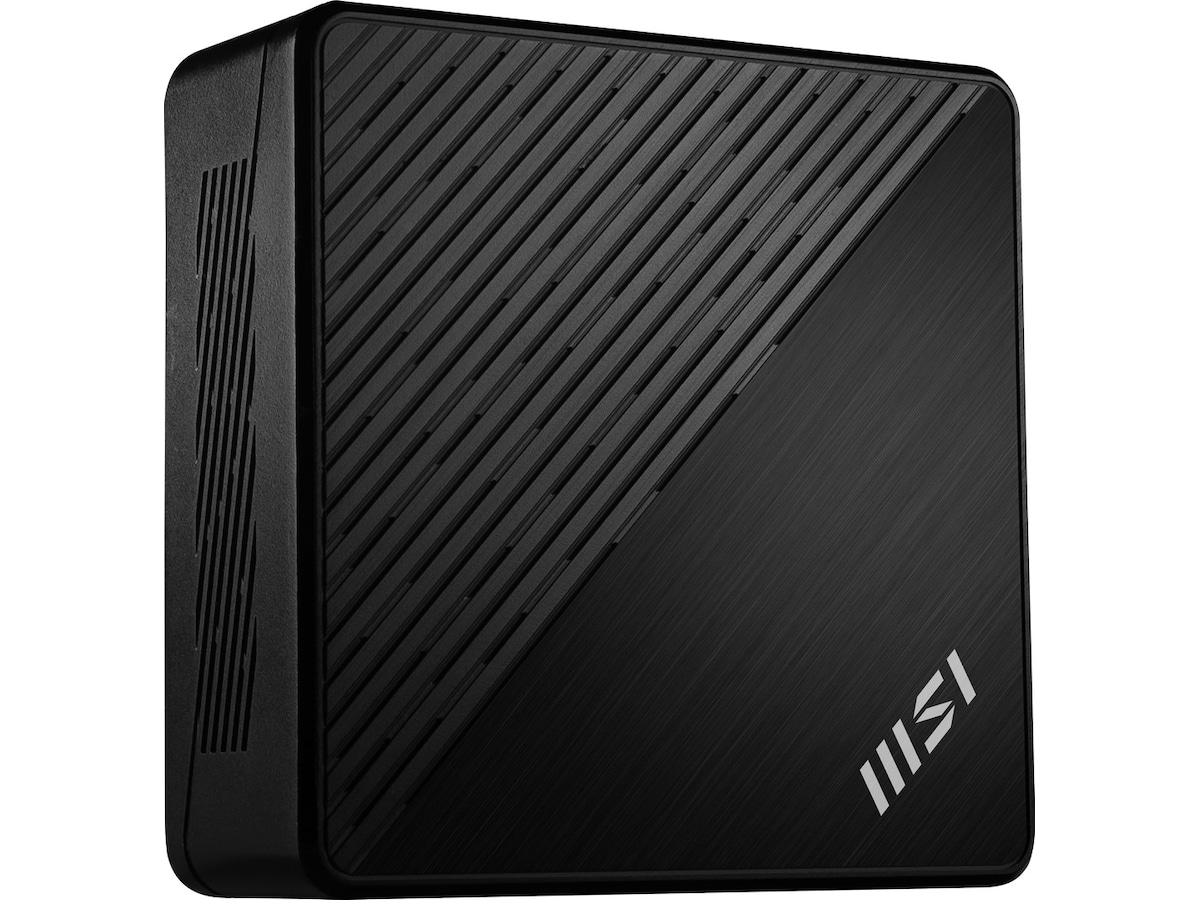

MSI Cubi 5 Mini-PC

Iris Xe Graphics, Core i7-1255U, 16 GB RAM, 512 GB SSD, Windows 11 Pro

More pictures from MSI Cubi 5 Mini-PC

8 912:- Exkl. moms
Trygghetsavtal från 34:-/mån
49 stk. i lager. (1-3 dagar leveranstid)

MSI Cubi 5 Mini-PC

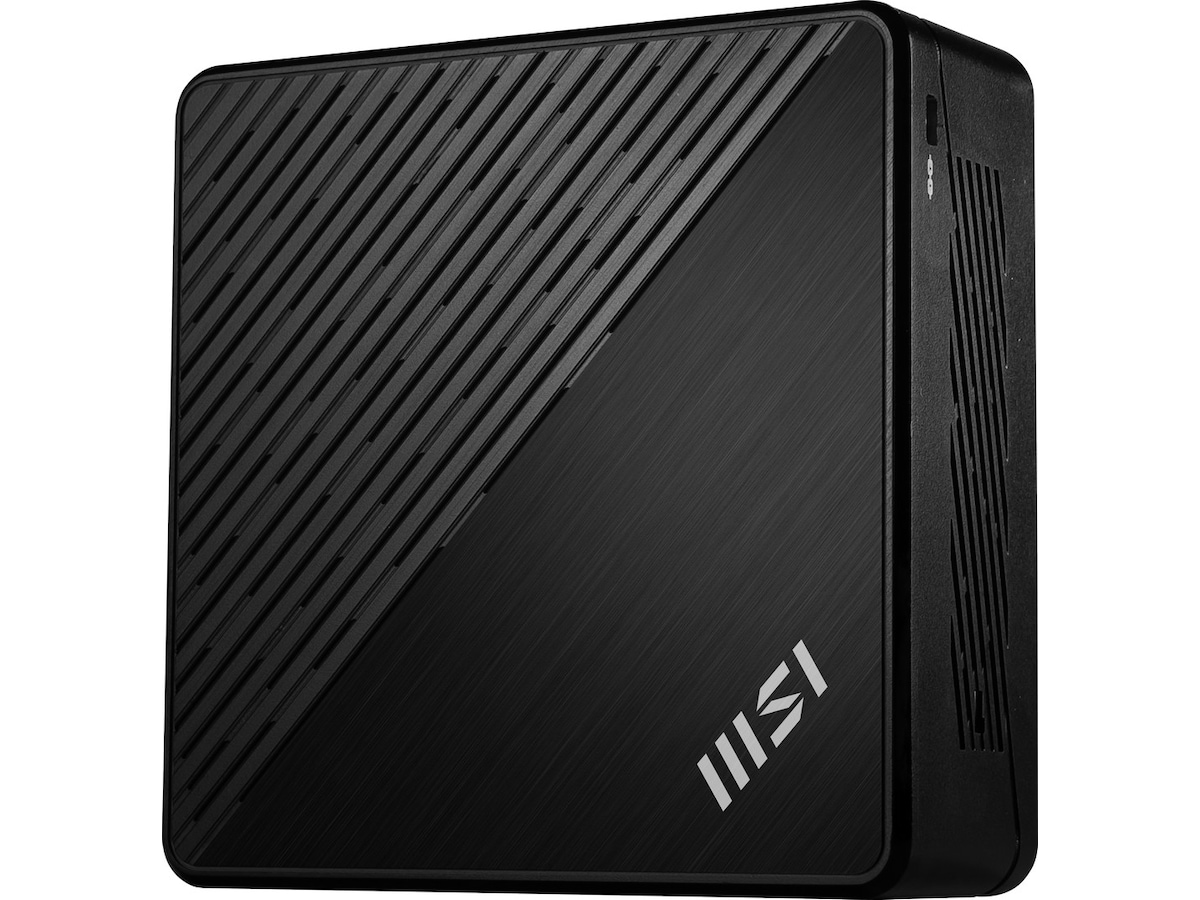

Wavy Meshed Design

MSI Cubi 5 is a mini PC in its kind. With a less than 0.7 liter case that still provides all the elements of a desktop-worthy PC. With a wavy meshed design, Cubi 5 is not just a mini PC but a fashion house decoration.

MSI Cloud Center - Fast, Secure & Wireless Backup

Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members or make files as private as you want. The decision is in your hands.

Support Up To 8K Resolution

Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.

Bolt To The Next Power

Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS. Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly

  • Up to 40Gbps Data Transmission Speed
  • Up to 10GbE LAN Speed *With Thunderbolt to 10GbE Switch
  • Support USB-C Protocols

See More, Do More

With HDMI, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.

MSI Center

The MSI Center takes optimization to the next level with customizable UI that avoid unnecessary workload for your system and easily adjustable system modes; it helps to prioritize & allocate the resource on your hand and accelerate the performance of those software which you work with every day.

  • Prioritize your work with Smart Priority
  • Setup your monitor color for different use
  • Easily organize and find your pictures with Smart Image Finder

Stable and Powerful

Equips up to 12th Gen Intel® Core™ i7 processor (Alder Lake) with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.

Up to Core i7-1255U With 12 Cores
Up to 64GB Dual Channel Memory

Connect All of Your Productive Devices

Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.

  • Support MU-MIMO Protocols
  • Up to 75% Lower Latency
  • Up to 3X Faster Gigabit Speeds

USB 3.2 Gen 2 Type A

With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.

Dual LAN & 2.5G LAN

More than Dual LAN, the best way to secure your data and prevent the Hacker. Dual premium network solution for both Intranet and Internet, offering a smooth gaming experience for effective network connection. Users can also connect and rapidly transfer data over a network with the high-bandwidth and low-latency 2.5Gbps Ethernet LAN.

Easy Maintenance

Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.

FW TPM Support

FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

VESA Mount Support

VESA Mountable design allows users to hook Cubi 5 up anywhere you like. Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.

Skip to main content Cubi 5 12M Name Size Modified 8553c6c8_Cubi_5 .html Actions 16 KB 2 months ago 1 file 16 KB MSI EMEA Cloud – a safe home for all your data Legal notice · Privacy policy Get your own free account Document

The Energy Efficient Mini-PC

The Cubi 5 12M is a complete system equipped with an Intel 12th Gen Core processor, DDR4 memory, M.2 SSD storage, and Windows 11 software pre-installed. With triple monitor support, Thunderbolt 4 connectivity, Intel Wi-Fi 6E, and dual LAN network capabilities, the Cubi 5 12M is compact, versatile, yet capable mini desktop PC for home or the office.

Compact

The Cubi 5 12M Mini PC comes in a palm-sized 124 x 124 x 53.7 mm case (0.66L/0.57kg) with far less performance trade off compared to laptops.

Capable

RAM: The Cubi 5 12M includes DDR4 memory (2 x SO-DIMMs, expandable up to 64 GB).

Storage: The Cubi 5 12M comes with M.2 SSD storage for faster loading times.

The Cubi 5 12M can be upgraded with 1 x 2.5" SATA HDD/SSD

Triple Display Support

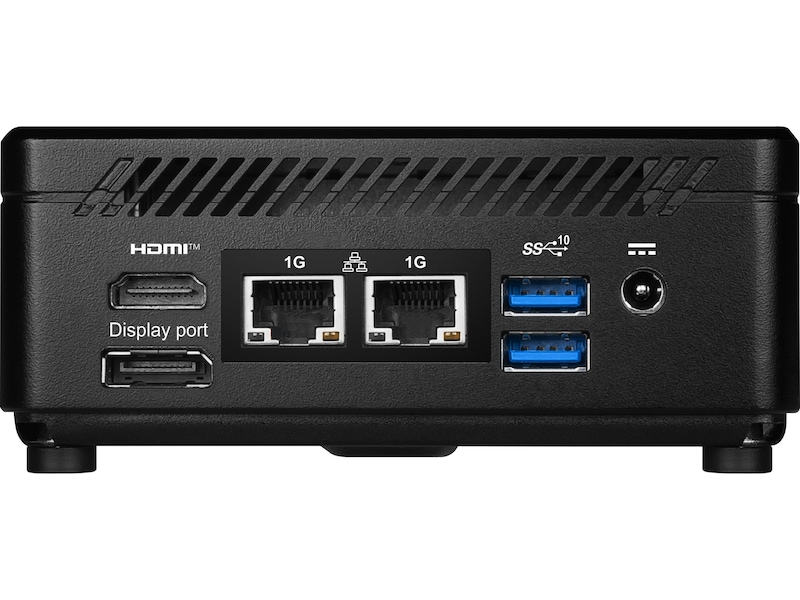

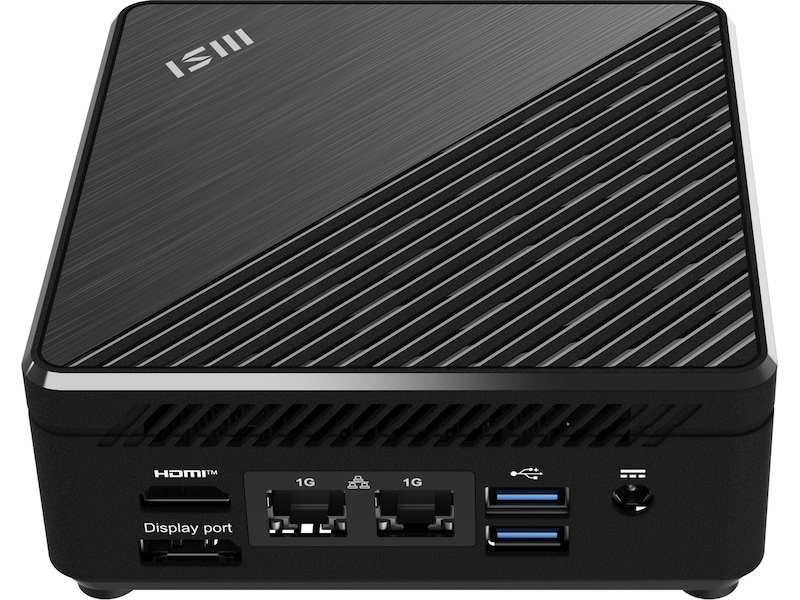

The I/O panels include HDMI 2.0b, DisplayPort 1.4 & Thunderbolt 4 outputs, which support triple monitor setups for improved workflow efficiency or previewing e-commerce content.

With 8K UHD display support, the MSI Cubi 5 12M can be used as Home-Theater/Media PC.

Wi-Fi 6E & Dual LAN

Network connectivity includes up to Intel Wi-Fi 6E AX211 (up to 2.4 Gbps), Bluetooth 5.3, and 2.5G + 1G ethernet LAN.

Thunderbolt 4

Thunderbolt 4 brings Thunderbolt to USB-C at incredible speeds up to 40 Gbps to create one compact port that does it all.

USB 10Gbps Type-A

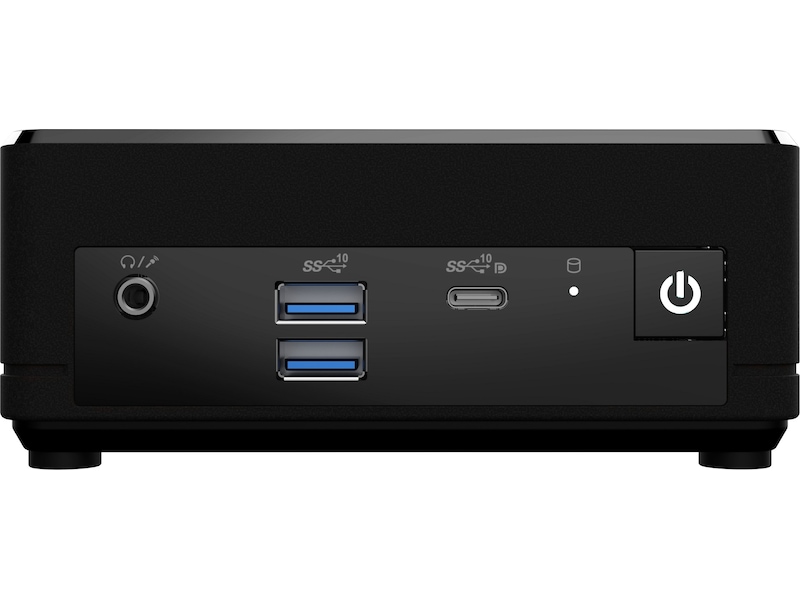

4 x USB 3.2 Gen 2 (10Gbps) Type-A ports in the front and back I/O ensure that plugging in and transferring data between multiple devices is quick and hassle-free.

VESA Mountable Design

The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment.

MSI Center & Cloud

MSI Center and MSI Cloud Center offer multiple optimizations that can help lighten the workload.

Allmänt
Produktlinje MSI Cubi 5 12M
Producentens garanti (månader) 36
EAN 4711377025966
System
Hårddiskkapacitet 512 GB
Typ PC
Embedded Security Firmware Trusted Platform Module (TPM) Security Chip
Chassi
Formfaktor Ultraliten modell
Inbyggda enheter Luftkylningslösning
Tillverkarens format Mini-PC
Processor
Typ Core i7
Huvudfunktioner för processor Intel Smart Cache
Installerat antal 1
Tillverkare Intel
Klockfrekvens 1.7 GHz
Max antal som stöds 1
Antal kärnor 10-core
Processornummer I7-1255U
Maximal turbohastighet (effektiva kärnor) 3.5 GHz
Generation 12
Klockhastighet (effektiva kärnor) 1.2 GHz
Max. turbohastighet 4.7 GHz
Cacheminne
Installerad storlek 12 MB
RAM
Konfigurationsegenskaper 2 x 8 GB
RAM 16 GB
Hastighet i MHz 3200 MHz
Minneshastighet 3200 MHz
Teknik DDR4 SDRAM
Antal kortplatser 2
Formfaktor SO DIMM 260-pin
Tomma kortplatser 0
Maxstorlek som stöds 64 GB
Kontrollerkort
Installerat antal 1
Typ Serial ATA
Hårddisk
SSD-formfaktor M.2 2280
Typ SSD
Installerat antal 1
Lagringsutrymme 512 GB
Egenskaper för hårddisk NVM Express (NVMe)
Gränssnittsklass PCI Express
Hårddisk (andra)
Typ Ingen
Hårddisk (tredje)
Typ Ingen
Hårddisk (4:e)
Typ Ingen
Optisk lagring
Enhetstyp Ingen optisk drivenhet
Typ Ingen
Optisk lagring (sekundär)
Typ Ingen
Enhetstyp Ingen optisk drivenhet
Flyttbar lagringslösning
Typ Ingen
Bildskärm
Typ Ingen.
Videoutgång
Grafikprocessor Intel Iris Xe-grafik
Grafikprocessorserie Intel Iris Xe Graphics
Maximalt antal skärmar 3
Videogränssnitt DisplayPort, HDMI, USB-C
Ljudutgång
Ljudutgångsläge 2,1 kanal-surround
Standarder som följs HD-ljud
Ljudingång
Typ Ingen
Skrivare
Typ Ingen
Nätverk
Stöd för Wireless LAN Ja
Trådlöst NIC Intel Wi-Fi 6E AX 211
Ethernet-kontroller Realtek RTL8125BG-CG, RTL8111H
Trådlöst protokoll Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Datalänkprotokoll Fast Ethernet, IEEE 802.11g, 2.5 Gigabit Ethernet, Ethernet, IEEE 802.11n, IEEE 802.11b, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11a, Gigabit Ethernet, IEEE 802.11ac
Expansionsfack
Fack 1 (totalt)/ 1 (ledig) x intern 2.5"
Expansionsuttag
Kortplatser 1 (totalt)/ 0 (ledig) x M.2 Card
Medföljande OS
Familj Windows 11
Typ Windows 11 Pro
Utgåva Windows 11 Pro
Programvara
Typ MSI Center
Nätdel
Typ Strömadapter
Effekt 65 Watt
Erforderlig frekvens 50/60 Hz
Nätspänning AC 100-240 V
Diverse
Typ av säkerhetsplats Kensington säkerhetsplats
Färgkategori Svart
Stöld-/inbrottsskydd Plats för säkerhetslås (kabellås säljs separat)
Färg Svart
Monteringsgränssnitt för platt bildskärm 100 x 100 mm
Standarder som följs cUL, CB, RCM, UL, VCCI, FCC Klass B-certifierade
Mått och vikt
Höjd 5.37 cm
Vikt 590 g
Bredd 12.4 cm
Djup 12.4 cm
Mått och vikt (brutto)
Emballagets vikt 1.33 kg
Miljöparametrar
Min temperatur vid drift 0 °C
Max temperatur vid drift 35 °C
Luftfuktighet vid drift 0 - 85%
Tillhandahållet gränssnitt
Gränssnitt 1 x hörlurar/mikrofon (1 på framsidan), 4 x USB 3.2 Gen 2 (2 på framsidan, 2 på baksidan), 1 x LAN (2.5Gigabit Ethernet), 1 x LAN (Gigabit Ethernet), 1 x DisplayPort (1 bakre), 1 x Thunderbolt 4/DisplayPort 1.4/USB-C (1 fram), 1 x HDMI-utmatning (1 bakre)
