XFX MERC 310 AMD Radeon RX 7900 XT
The all new XFX AMD Radeon RX 7900 Series is the highest performance Radeon to date so if you are looking for the best of the best, look no further than the Radeon RX 7900 XTX and Radeon RX 7900 XT Mercury 310
Real-Time Raytracing
The AMD Radeon™ RX 7900 XTX MERC 310 series graphics card, powered by AMD RDNA™ 2 architecture, featuring 96 powerful enhanced Compute Units, 96 Ray Accelerators, 2615 MHz BoostFrequency, 96 MB of all new AMD Infinity Cache and 24GB of dedicated GDDR6 memory, is engineered to deliver ultra-high frame rates and serious 4K resolution gaming.

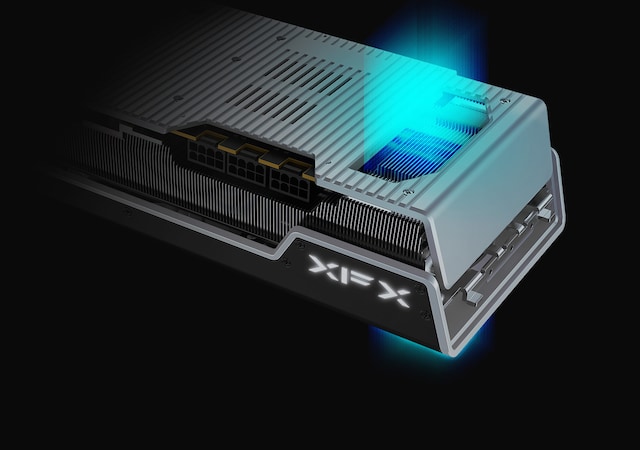

Staying Cool
Cooler than ever before. In addition to a huge pass through vent the new Mercury family of GPUs features plenty of heat dissipation all around including engineered airflow and exhaust, heat pipes, vapor chamber, dual ball bearing fans and plenty of thermal pads throughout the card.
A look inside
Specific the the Black Edition 7900 Series MERC 310 cards. there is a premium one piece aluminum fanshroud cover which is both incredibly sturdy yet light weight and improves indirect cooling of ambient heat traps generated by the heatsink.
Premium Fans
Features 3 full-size 100mm fans, with a dual ball bearing construction for ultra smooth operation that drastically extends the life of the fans. Paired with smart silent auto cooling detection sensors.
Zipper Fin Heatsink
Features a full aluminum zipper fin heatsink with a staggered fin design to increase airflow and heat dissipation while simultaneously reducing noise caused by air friction.
Heatpipes
The new XFX Radeon RX 7000 series have nickel plated copper heatpipes using a staggered design which reduces a concentration of hotspots on the heatsink resulting in drastically improved heat dissipation.
Vapor Chamber
XFX has brought back our server grade vapor chamber for significantly improved heat transfer over standard copper and aluminum cold plates. Additionally we’ve taken that added step of nickel plating our copper vapor chamber to improves its overall quality.
| Specifications | |
| Bus Type | PCI-E 4.0 |
| TGP | 282W |
| Base Clock Up to | N/A |
| Game Clock Up to | 2175MHz |
| Boost Clock Up to | 2535MHz |
| Stream Processors | 5376 |
| Compute Units | 84 |
| Memory Bus | 320 bit |
| Memory Clock | 20 Gbps |
| Memory Size | 20GB |
| Memory Type | GDDR6 |
| Card Profile | Dual slot |
| Thermal Solution | 3 Fan |
| Output - Display Port 2.1 | 3 |
| Output - HDMI™ 2.1 | 1 |
| Technologies | |
| 84 AMD RDNA™ 3 Compute Units(with RT+AI Accelerators) | Y |
| 80MB AMD Infinity Cache™ technology | Y |
| DisplayPort™ 2.1 | Y |
| AMD Radiance Display™ Engine | Y |
| AMD Radeon™ Boost technology* | Y |
| AMD Radeon™ Anti-Lag* technology* | Y |
| 20GB GDDR6 on 320-Bit Memory Bus | Y |
| PCI® Express 4.0 ready | Y |
| AMD FidelityFX™ technologies* | Y |
| AMD FidelityFX™ Super Resolution technology* | Y |
| Microsoft® DirectX® 12 Ultimate | Y |
| Microsoft® DirectStorage | Y |
| Vulkan® Optimized | Y |
| AMD smart technologies* | Y |
| AMD Software: Adrenalin Edition™ application | Y |
| AMD Noise Suppression* | Y |
| AMD Privacy View* | Y |
| AMD Radeon™ Super Resolution technology* | Y |
| AMD Link* | Y |
| AMD Freesync™ technology* | Y |
